BOCI Cypcut BLT641 12KW Intelligent Best Optical Fiber Laser Cutting Head
Basic introduction
BLT series high-power intelligent laser cutting head is a full-featured bus-controlled cutting head specially designed for the sheet metal processing industry. It is easy to install, easy to debug, with excellent performance and complete sensors. It is one of the few intelligent cutting heads on the market.
Features
Focusing lens temperature:
Monitor the state of the focusing lens, and provide quick feedback when the lens is contaminated
Ambient temperature of focusing lens:
Monitor the ambient temperature of the focusing mirror to effectively prevent the focusing mirror from working under high temperature
Cavity temperature:
Monitor the temperature of the cutting head cavity to avoid high temperature affecting the optics and cutting effect
Cavity humidity:
Monitor the humidity in the cavity to avoid condensation on the cutting head caused by high humidity
Cavity air pressure:
Monitor cavity air pressure and cavity seal reliability
Protective mirror temperature:
Monitor the status of the protective lens, when the lens is contaminated, it can quickly give feedback
Cutting air pressure:
Monitor the gas flow output during the cutting process to effectively prevent insufficient/excessive air pressure from affecting the quality of the cutting section
Capacitance:
Monitor the distance between workpiece and nozzle
Sensor head ambient temperature:
Monitoring the ambient temperature around the sensor head
Cutting gas temperature:
Monitor the cutting gas temperature to avoid high temperature gas affecting the quality of the cutting section
Specification
Adaptation software:HYPCUT8000 system
Control assembly:BCS200E
Interface Type:POE network cable
Optical scheme:Focus
Spot magnification factor:2.1 times
Highest power:15KW
Total measurement:427*152*137.6
Focus range:+50~-50
Application industry
Suitable for 6000W-15000W high power fiber laser cutting. Special optimization and upgrades are carried out for specific use environments to achieve long-term reliable and stable operation in daily industrial environments. Using ultra-precision and ultra-smooth lens processing technology, the BLT640 cutting head has excellent cutting quality and speed; it realizes seamless connection and deep integration with the system, and further improves production and processing efficiency; modular component design, rapid equipment on-site maintenance, customers can quickly Restore production capacity and achieve 24-hour uninterrupted production. Localized service and maintenance to further reduce user costs; additional sensors of the same type as BLT831 can dynamically monitor the entire cutting process, directly evaluate and analyze the reasons for changes in cutting capabilities, collect key process parameters, and use related algorithms to drive process improvement. And optimization, through the seamless connection and integration with the cutting system, the intelligent control of laser cutting is finally realized.
 |  |  |
| BLT420 Laser Cutting Up To 8KW | BLT641 Laser Cutting Up To 15KW | BLT661H Laser Cutting Up To 15KW |
|
|

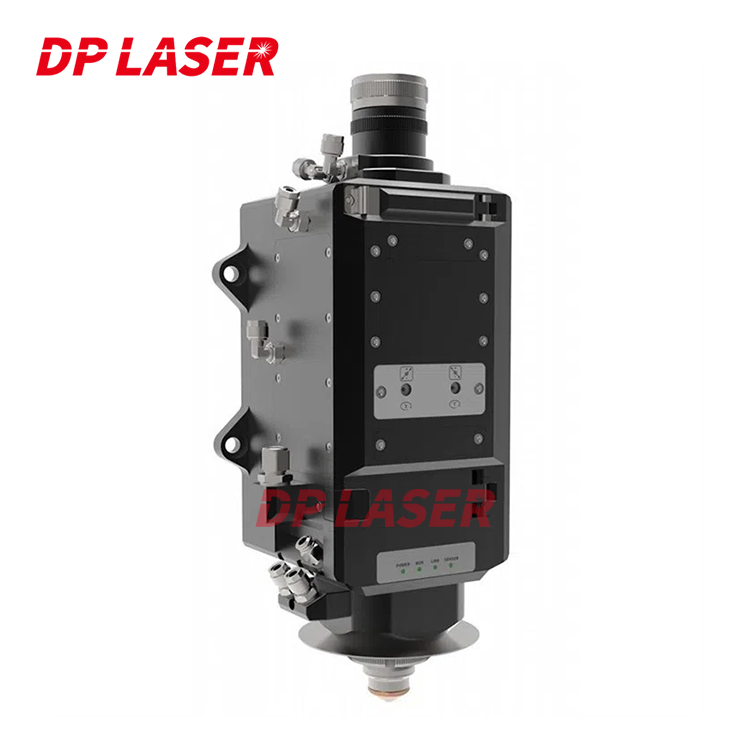

BOCI Cypcut BLT641 12KW Intelligent Best Optical Fiber Laser Cutting Head Images
|
